The standard Volvo I-Shift transmission has a 1:1 gear ratio, while the overdrive version offers a 0.78:1 ratio, ideal for long-distance travel. It handles high torque in hundreds of Newton meters and includes 12 forward gears and 4 reverse gears, making it versatile for diverse driving conditions in Volvo trucks and buses.
.png)

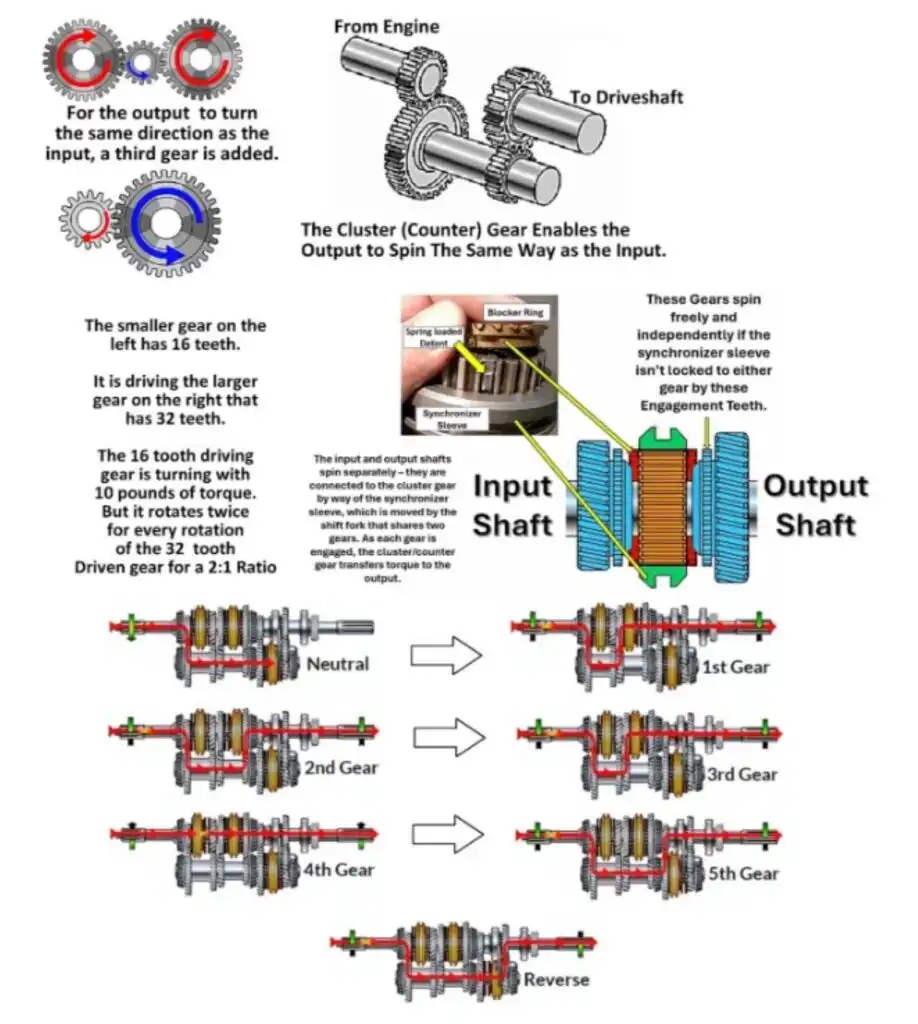

Why Gear Ratios Matter
Gear ratios play a critical role in determining how power from the engine is transmitted to the wheels. In the I-Shift system, gear ratios are meticulously designed to balance performance, fuel economy, and torque. Drivers can benefit from optimal fuel efficiency, especially during long-distance hauls, as well as the ability to handle heavy loads in vocational settings.
- Gear Ratio of 1:1 – Standard Setting： In the standard version of the I-Shift transmission, a 1:1 gear ratio ensures the input and output shafts rotate at the same speed. This setup effectively balances power and fuel efficiency, making it suitable for everyday driving conditions.
- Impact on Performance： With a 1:1 gear ratio, trucks can operate efficiently without requiring excessive power or low speeds. It is well-suited for urban driving and moderate long-distance travel, reducing the need for frequent gear shifts and enhancing fuel economy.
- Torque Handling： Capable of handling up to 2,800 Newton meters (Nm) of torque, depending on the model, the standard I-Shift transmission is designed for high torque management. This makes it an ideal choice for heavy-duty vehicles in industries like construction and freight that demand substantial load capacity.
Overdrive Gear Ratio of the Volvo I-Shift Transmission
Gear Ratio of 0.78:1
For long-distance hauls, the overdrive version of the I-Shift transmission is a game-changer, featuring a gear ratio of 0.78:1. This means that the output shaft rotates faster than the input shaft, reducing engine RPM at highway speeds and improving fuel economy. The overdrive mode significantly reduces engine stress during extended highway driving, allowing for more efficient fuel consumption.
Fuel Efficiency Gains with Overdrive
With the overdrive ratio, the engine operates at lower RPMs when cruising, reducing fuel consumption by up to 5% in long-haul applications. This efficiency gain can translate to substantial savings for fleet operators over time, especially in industries where fuel costs represent a significant portion of operating expenses.
Performance Impact During Long-Distance Travel
While overdrive is designed for fuel savings, it also improves performance by lowering engine wear and tear. This increases the longevity of the engine and transmission, reducing the need for frequent repairs or replacements, which is a critical factor for fleet operators focused on minimizing maintenance costs.
Standard Gear Ratios for the Volvo I-Shift Transmission
The Volvo I-Shift transmission is designed to provide optimal performance, whether in standard or overdrive configurations. Each of the 12 forward gears contributes to a balance between power, fuel efficiency, and smooth operation.
| Gear | Standard Version Gear Ratio | Overdrive Version Gear Ratio |
|---|---|---|
| 1st | 12.80:1 | 14.94:1 |
| 2nd | 9.95:1 | 11.61:1 |
| 3rd | 7.91:1 | 9.22:1 |
| 4th | 6.29:1 | 7.34:1 |
| 5th | 5.06:1 | 5.90:1 |
| 6th | 4.04:1 | 4.71:1 |
| 7th | 3.23:1 | 3.77:1 |
| 8th | 2.58:1 | 3.01:1 |
| 9th | 2.06:1 | 2.40:1 |
| 10th | 1.65:1 | 1.92:1 |
| 11th | 1.30:1 | 1.51:1 |
| 12th | 1.00:1 | 0.78:1 |
How Each Gear Contributes to Performance and Efficiency
- Lower Gears (1st – 5th): These gears provide high torque, enabling heavy loads to be hauled easily, especially at low speeds. They are ideal for starting from a standstill, tackling steep gradients, or navigating difficult terrain. In the overdrive configuration, lower gears provide even more power, which is beneficial for extremely heavy-duty applications or vocational tasks.
- Mid Gears (6th – 8th): These gears balance torque with moderate speed, typically used during normal urban or suburban driving. The gear ratios ensure smooth shifts with minimal fuel consumption while still providing enough power for acceleration.
- Higher Gears (9th – 12th): These gears are designed for highway cruising, where maintaining speed with minimal engine strain is essential. The overdrive versions of the higher gears (like 0.78:1 in 12th) are specifically engineered to reduce engine RPMs at high speeds, thereby improving fuel efficiency and reducing wear on the engine over long distances.
Comparison with Manual and Other Automated Transmissions
To fully understand the benefits of the Volvo I-Shift transmission, it’s essential to compare its gear ratios and performance metrics with competing transmission systems from other manufacturers. Below is a comparison table that highlights the differences between the Volvo I-Shift, the Mercedes-Benz Powershift 3, and the ZF TraXon automated transmissions:
| Transmission | 1st Gear Ratio | 6th Gear Ratio | 12th Gear Ratio | Overdrive Gear Ratio | Max Torque Capacity | Number of Forward Gears |
|---|---|---|---|---|---|---|
| Volvo I-Shift (Standard) | 12.80:1 | 4.04:1 | 1.00:1 | N/A | 2,800 Nm | 12 |
| Volvo I-Shift (Overdrive) | 14.94:1 | 4.71:1 | 0.78:1 | 0.78:1 | 2,800 Nm | 12 |
| Mercedes-Benz Powershift | 12.89:1 | 4.09:1 | 1.00:1 | 0.77:1 | 3,000 Nm | 12 |
| ZF TraXon | 16.41:1 | 4.17:1 | 1.00:1 | 0.75:1 | 3,200 Nm | 12 |
- 1st Gear Ratios: The ZF TraXon transmission offers the highest 1st gear ratio (16.41:1), making it particularly well-suited for heavy-duty applications where extreme torque is required to move heavy loads from a standstill. The Volvo I-Shift and Mercedes-Benz Powershift offer slightly lower ratios in comparison, but they still provide ample power for most vocational and long-haul applications.
- Mid Gear Ratios: The 6th gear ratio in all three transmissions is fairly comparable, with small variations. However, the ZF TraXon (4.17:1) slightly edges out the others in terms of providing better power at moderate speeds.
- 12th Gear Ratios: All three transmissions feature a 1.00:1 ratio in their top non-overdrive gears, indicating that the transmission output speed is equal to the engine’s input speed. This configuration provides a good balance between power and fuel efficiency during highway cruising.
- Overdrive Gear Ratios: Both the Volvo I-Shift and Mercedes-Benz Powershift offer similar overdrive gear ratios, with Volvo’s at 0.78:1 and Mercedes-Benz at 0.77:1. The ZF TraXon, however, stands out with a 0.75:1 overdrive ratio, providing even more fuel savings during long-haul operations.
- Max Torque Capacity: The ZF TraXon transmission has the highest torque capacity at 3,200 Nm, making it ideal for extremely heavy-duty applications. The Volvo I-Shift offers a respectable 2,800 Nm, which is suitable for most trucking applications, while the Mercedes-Benz Powershift offers 3,000 Nm, sitting between the two.
- Number of Gears: All three transmissions offer 12 forward gears, ensuring a wide range of flexibility across different driving conditions.
How the Volvo I-Shift Stands Out
- Fuel Efficiency: While the ZF TraXon offers slightly better fuel efficiency in terms of gear ratios, the Volvo I-Shift is designed to excel in overall fuel savings, thanks to its integration with advanced features like I-See and Eco-Roll, which further reduce fuel consumption by leveraging predictive and situational driving data.
- Torque and Load Handling: For industries requiring ultra-high torque capacity, the ZF TraXon might be preferable. However, for most vocational tasks, the 2,800 Nm torque capacity of the Volvo I-Shift is more than sufficient, allowing it to handle heavy payloads without compromising efficiency or performance.
- Smooth Gear Shifts: One of the primary advantages of the Volvo I-Shift over both the Mercedes-Benz Powershift and ZF TraXon is its smoother, automated gear shifts, which reduce driver fatigue and improve overall driving comfort. This is particularly important for long-distance hauls where consistent gear changes are necessary.
.png)
Which Transmission Is Right for You?
While the ZF TraXon and Mercedes-Benz Powershift offer some impressive features, the Volvo I-Shift remains a top contender for fleets looking for a well-rounded, fuel-efficient transmission system. Its optimized gear ratios, combined with advanced features like I-See and Eco-Roll, ensure that the Volvo I-Shift strikes the perfect balance between performance, torque handling, and fuel economy.
For those requiring extreme torque, the ZF TraXon may be the best option, while the Volvo I-Shift is ideal for drivers seeking reliability, smooth performance, and advanced fuel-saving technology. Fleet operators looking for enhanced durability, efficiency, and long-term value will find that the Volvo I-Shift transmission offers unbeatable benefits across a wide range of applications.
Fuel-saving options: Eco-Roll and I-See
Eco-Roll is a feature that conserves fuel during downhill driving by disengaging the engine when no torque is required. This allows the vehicle to coast without engine resistance, significantly reducing fuel consumption over long distances.
I-See is a predictive shifting feature integrated into the I-Shift system. It uses GPS data to anticipate road conditions and adjust gear shifts for maximum fuel efficiency. By selecting the optimal gear based on upcoming terrain, I-See can further reduce fuel consumption, particularly in hilly or undulating environments.
Lightweight Design for Heavy-Duty Applications
Despite its advanced features, the Volvo I-Shift transmission is relatively lightweight, weighing between 597 to 610 lbs (270 to 276 kg). This lightweight design contributes to overall vehicle efficiency without compromising on durability.
Regional Differences in the I-Shift System and Latest Adoption Rates
- Europe： where fuel efficiency and emissions compliance are critical, the I-Shift is optimized for long-distance and urban transport. Strict CO2 emissions regulations have driven Volvo to include advanced features like Eco-Roll and I-See, which allow trucks to coast downhill and use predictive cruise control, maximizing fuel savings. Over 90% of new Volvo trucks sold in Europe now come equipped with the I-Shift system, a testament to its popularity among operators looking to reduce costs and meet regulatory demands.
- North America： focus on heavy-duty trucking means the I-Shift is reinforced to handle higher torque loads, often paired with powerful Volvo engines like the D11, D13, and D16. The I-Torque feature ensures fuel efficiency even when hauling heavy loads across long distances. With around 80% of Volvo trucks sold in the U.S. and Canada equipped with I-Shift, its ability to manage demanding conditions has solidified its place in the market.
- Asia： road conditions vary widely, from modern highways to challenging rural routes. Volvo has tailored the I-Shift system to balance torque and efficiency, handling diverse driving conditions in countries like China and India. The system is also compatible with lower-quality diesel fuel, commonly found in these regions. As infrastructure improves and fuel efficiency becomes more important, the adoption rate, currently over 60%, is expected to grow further.
- South America： such as Brazil, requires the I-Shift system to withstand extreme weather, including high heat and humidity. Optimized for fuel consumption, the system’s features like low idle RPM and precise gear shifting help keep operational costs low, a key concern in regions where fuel expenses are significant. Adoption rates have surpassed 50%, with growing recognition of the system’s long-term economic benefits.
Volvo’s I-Shift system demonstrates significant adaptability across different global markets, offering tailored solutions for diverse driving conditions, fuel types, and regulatory landscapes. These regional variations, combined with strong adoption rates, solidify the I-Shift as a leading choice for fleet operators worldwide.
